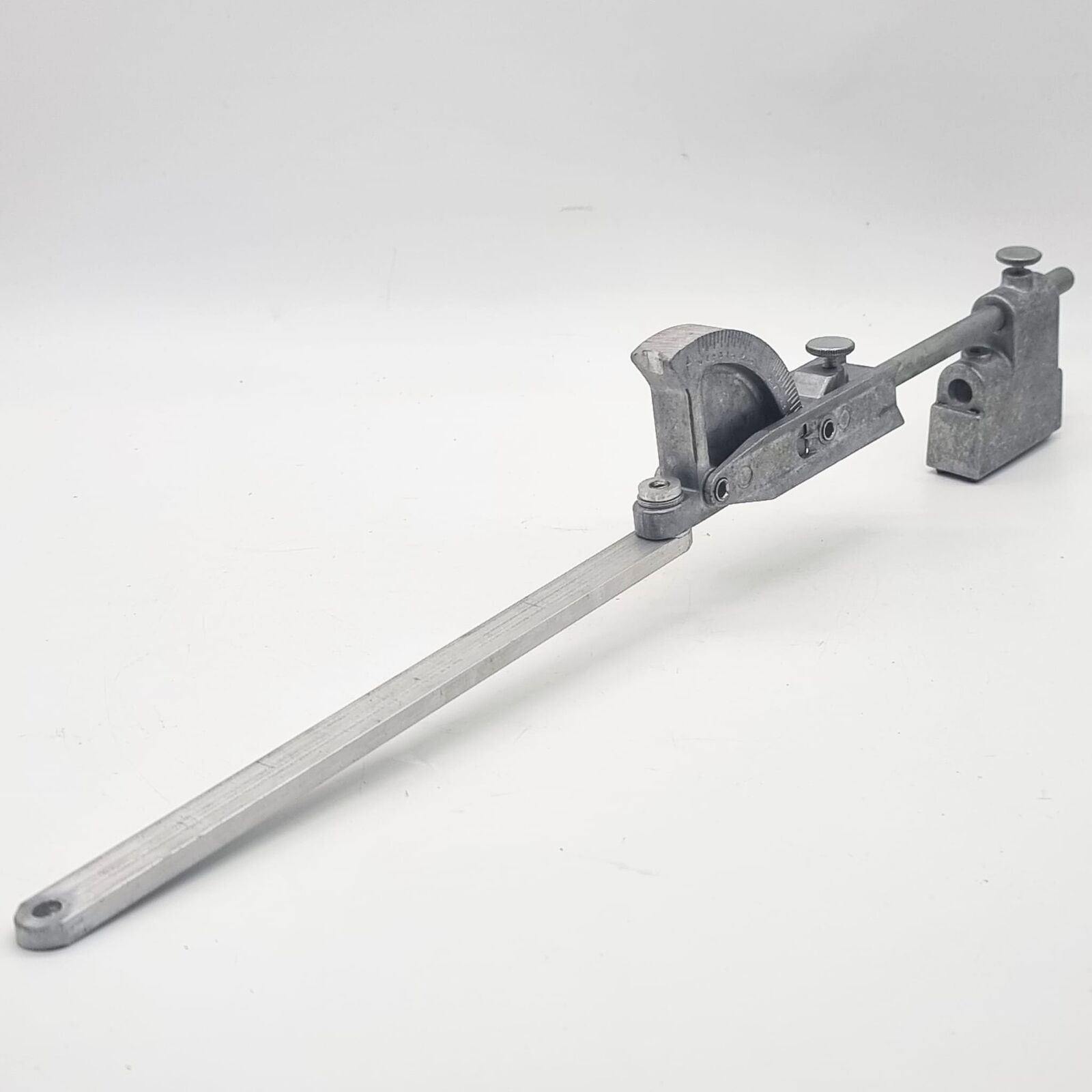

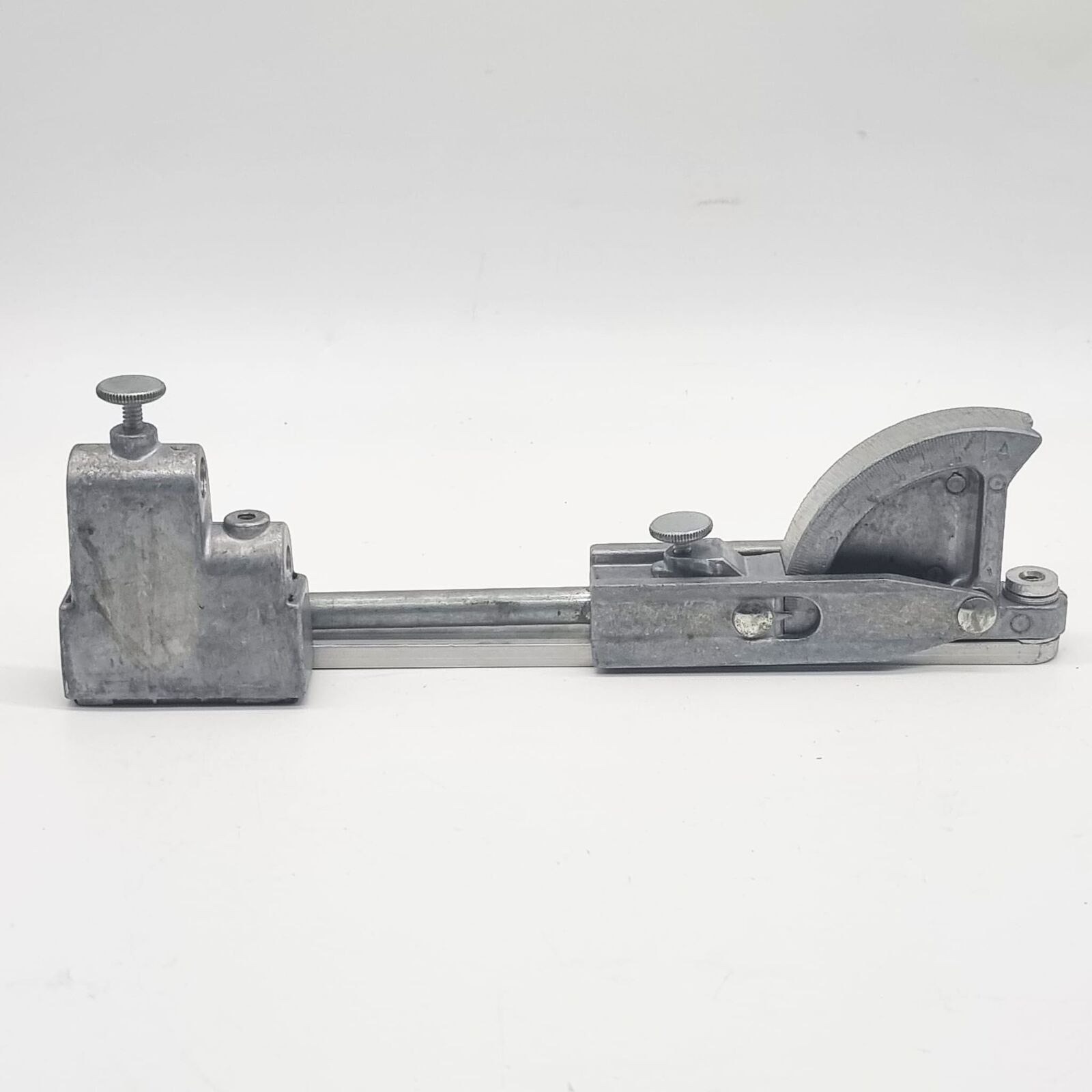

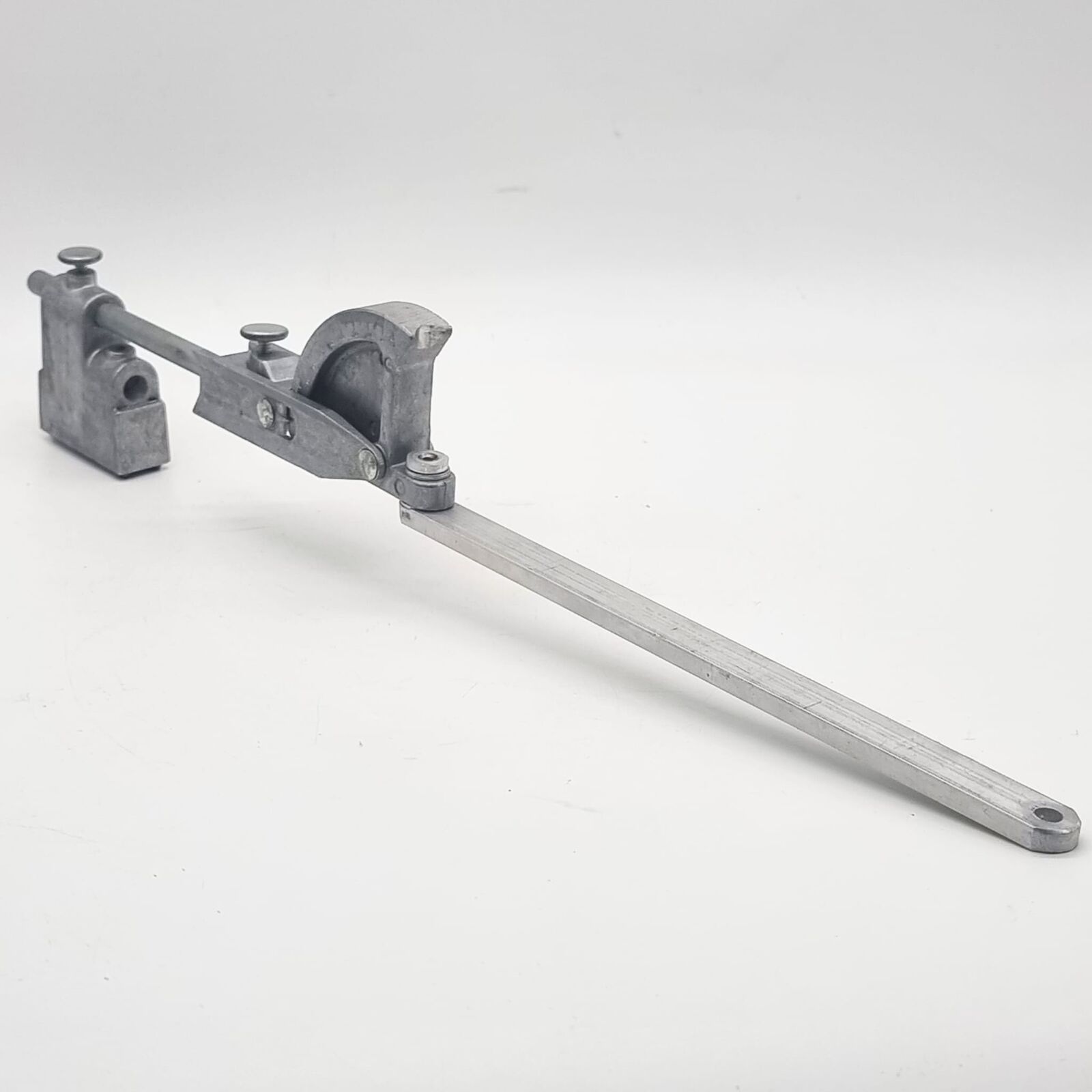

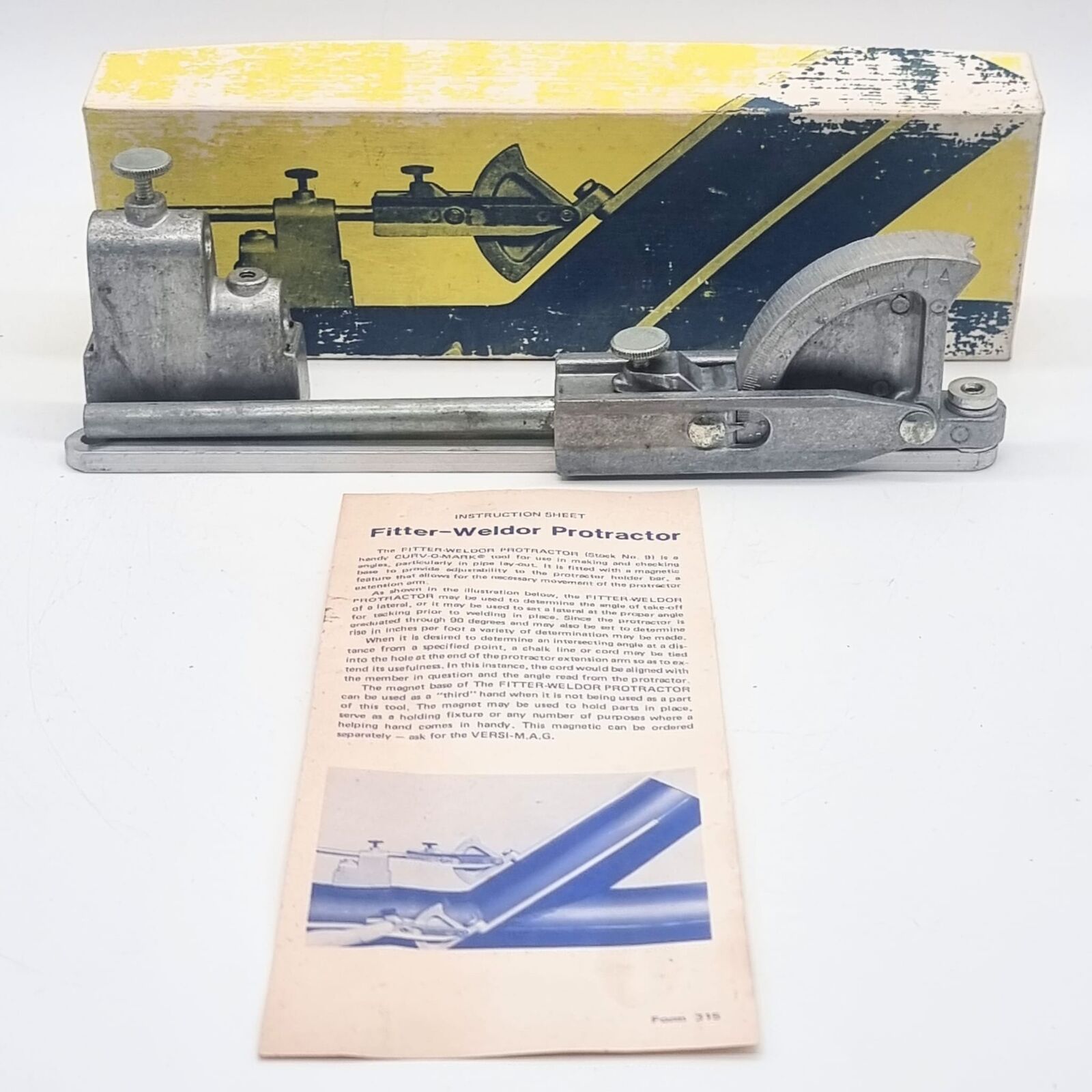

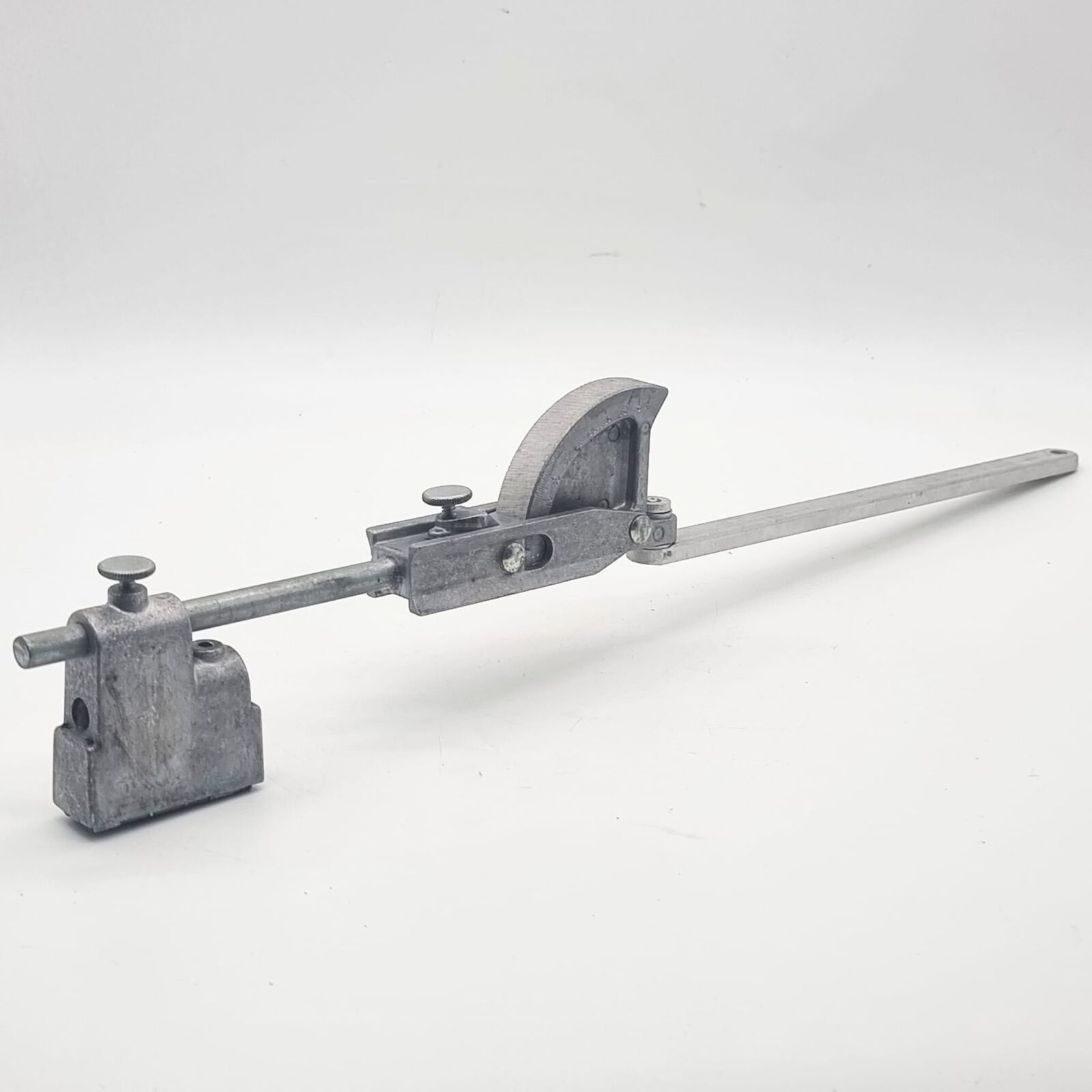

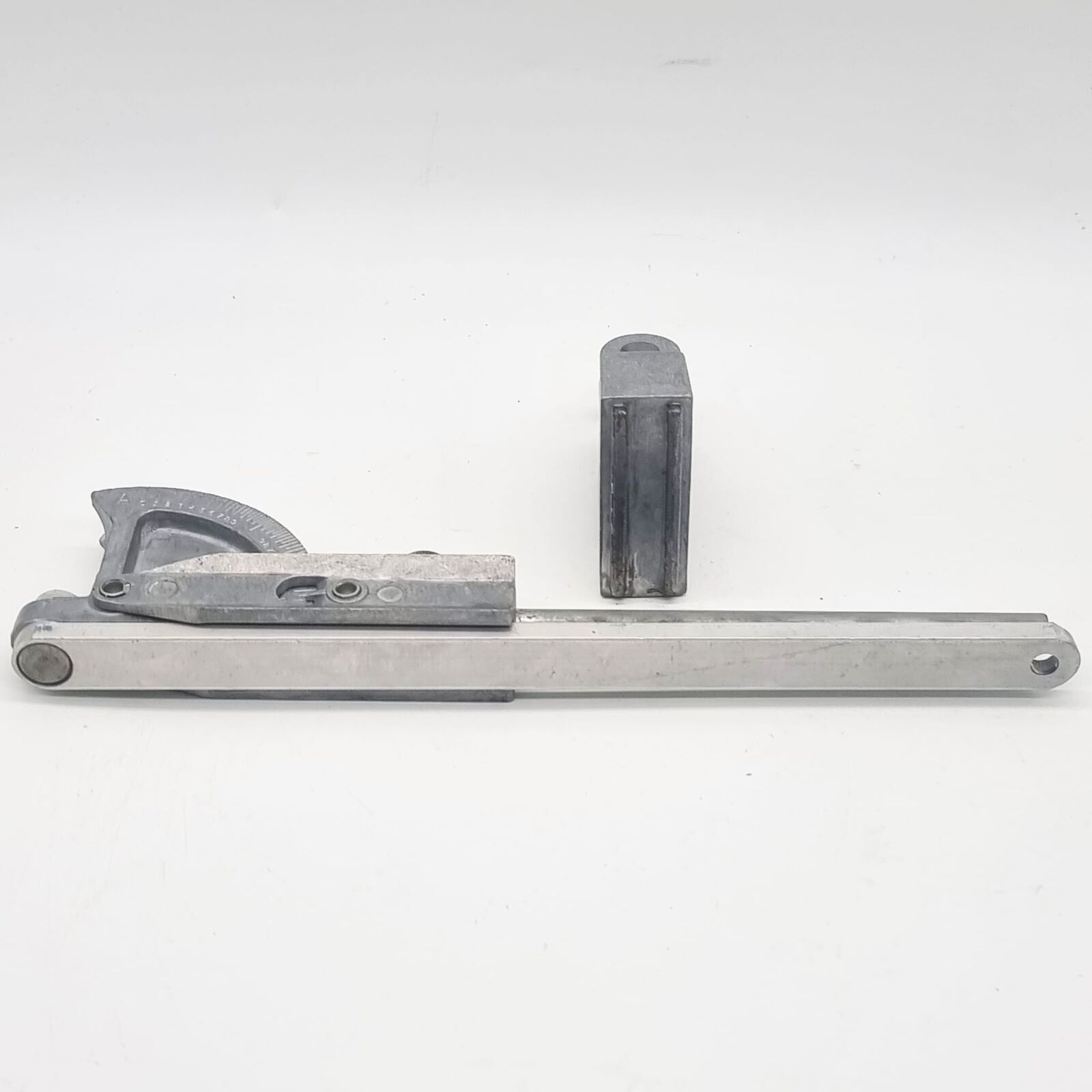

Vintage Curv-O-Mark No. 9 Fitter Weldor Protractor

The Vintage Curv-O-Mark No. 9 Fitter Weldor Protractor is a precision pipe layout and angle-measuring tool designed for professional welding, fabrication, and pipe fitting applications. Built with a graduated protractor dial capable of measuring angles through 90 degrees, this tool assists in determining offsets, rises, and angular layouts with improved accuracy and repeatability.

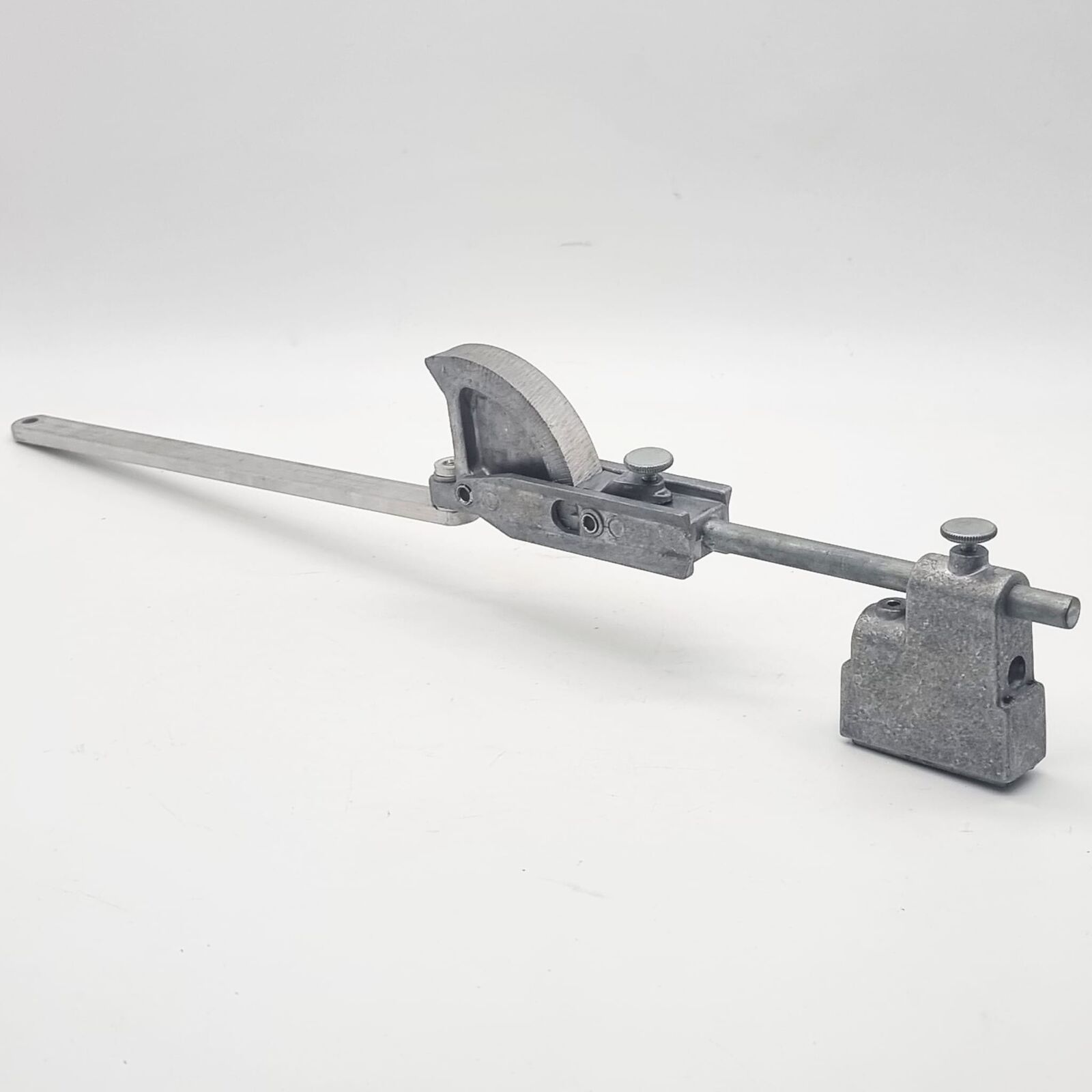

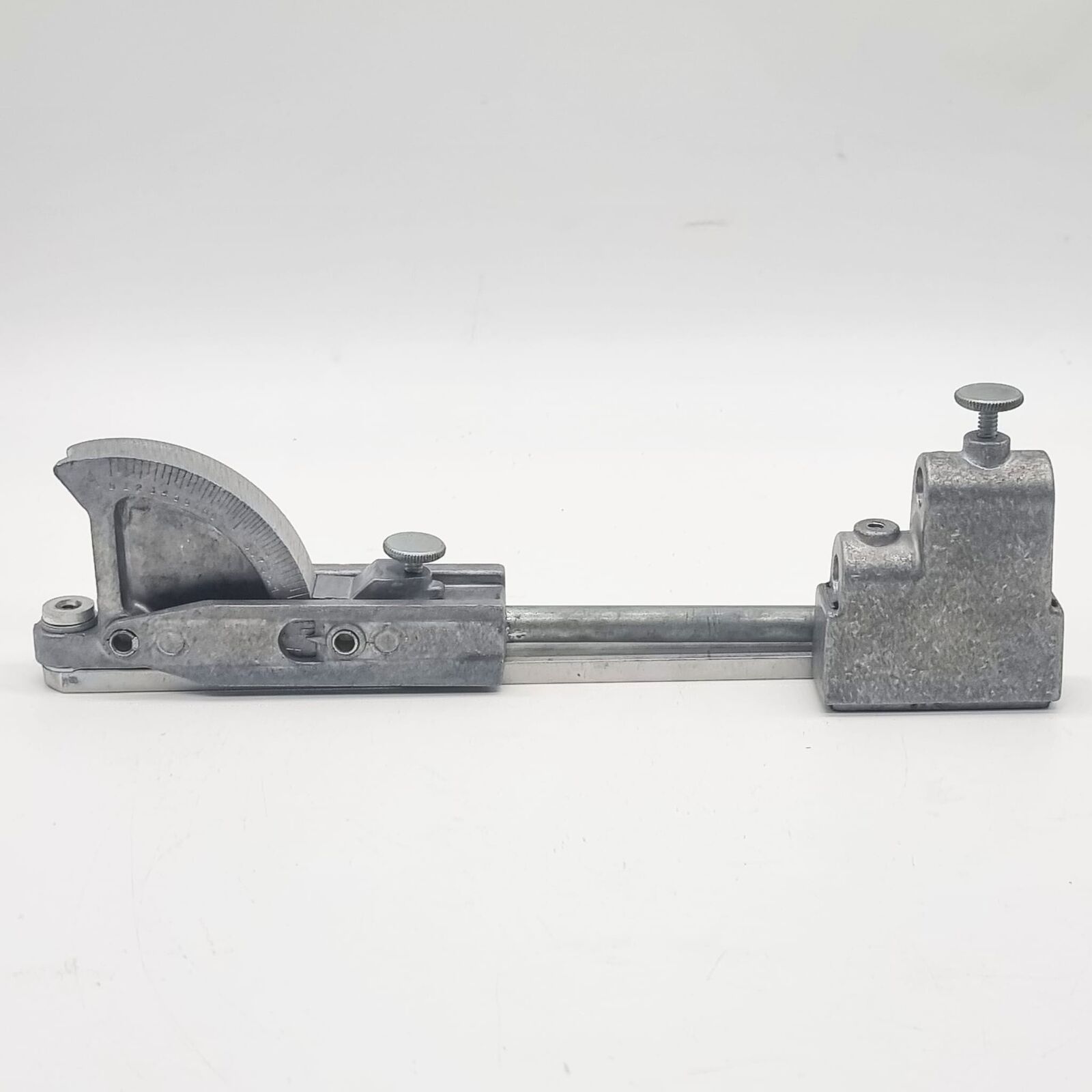

This model features a magnetic base for stable, hands-free positioning during layout work, along with an adjustable sliding holder bar and extension arm for added reach and flexibility. Manual thumb screw locks allow secure adjustment retention while working on pipe fabrication and alignment tasks. Suitable for workshop, industrial, and field applications, this vintage Curv-O-Mark tool remains a practical addition for pipefitters, welders, and metal fabrication professionals.

Key Features:

• Graduated protractor dial measures angles through 90 degrees

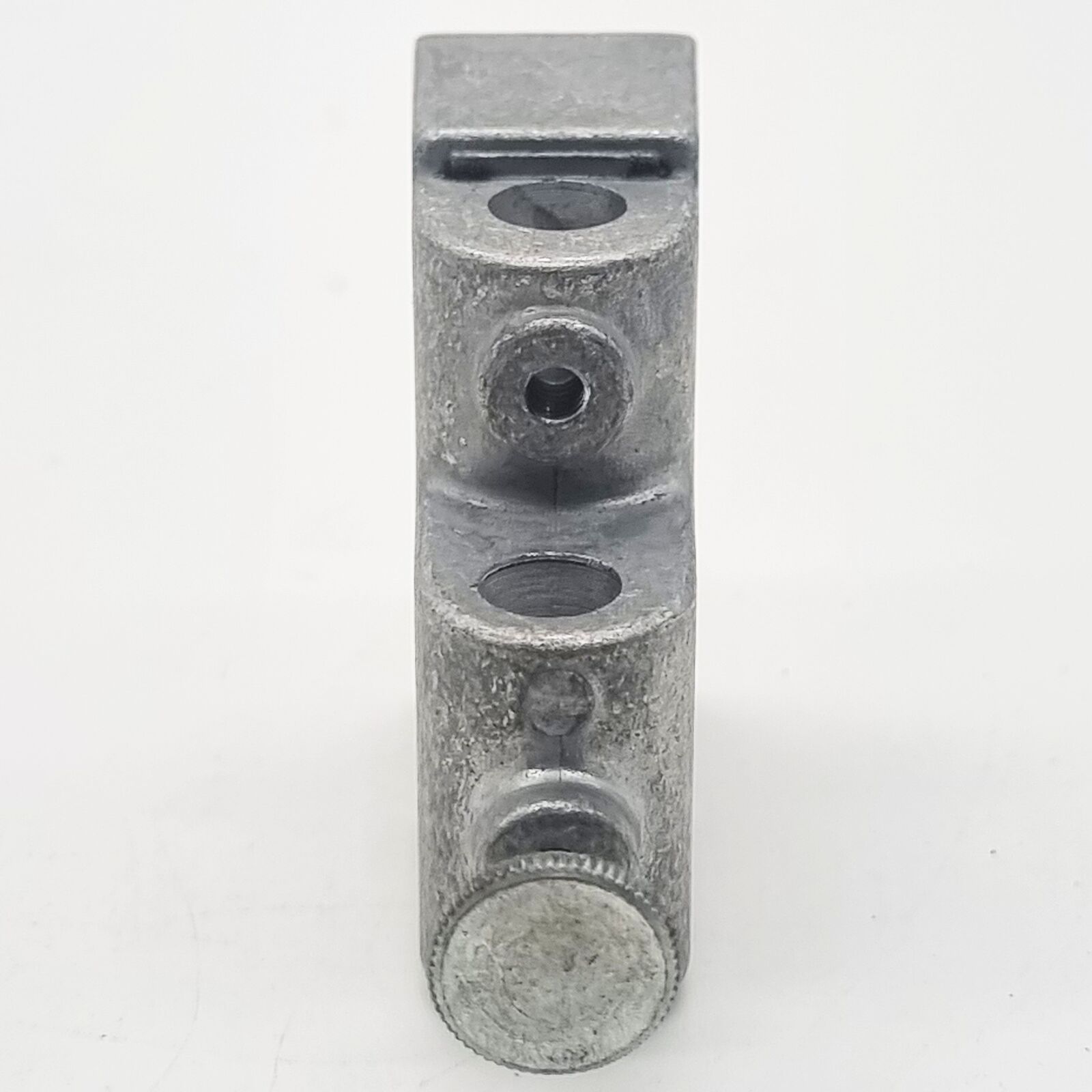

• Magnetic base enables stable hands-free positioning
• Adjustable sliding holder bar for flexible layout alignment
• Extension arm provides increased measuring reach
• Manual thumb screw locking mechanism secures settings
• Designed for pipe layout, offsets, and rise calculations
• Durable metal construction suitable for industrial environments
• Ideal for welding, fabrication, and pipefitting applications

NEW, NEVER USED.
