Vintage Curv-O-Mark #1 Standard Contour Marker with Structural Adaptor

The Vintage Curv-O-Mark #1 Standard Contour Marker is a precision layout tool designed for industrial pipe-fitting and steel fabrication. This instrument facilitates the accurate marking of joints and angles on pipes and structural steel members.

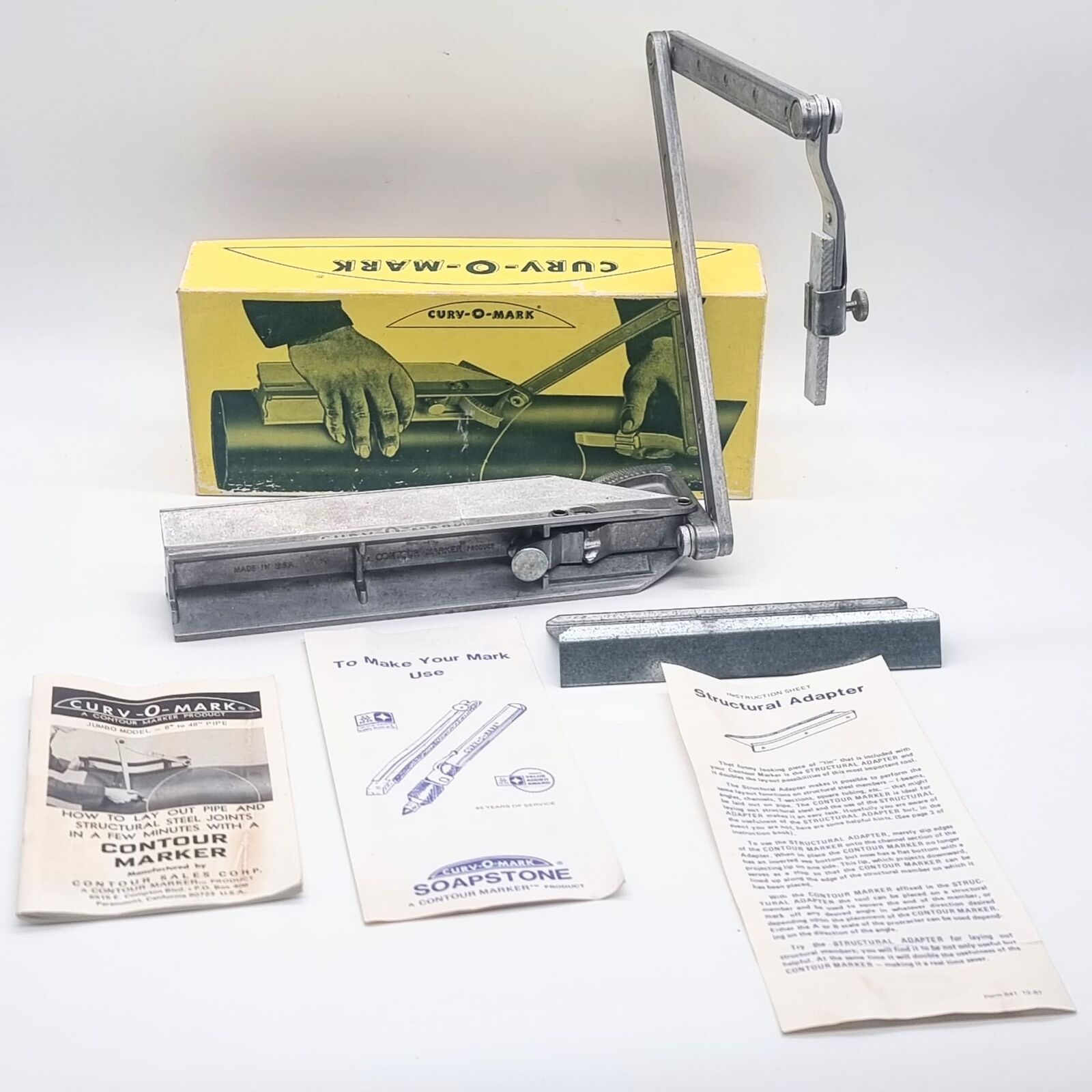

Included with this unit is the specialised Structural Adaptor, which expands the tool's utility to include layout tasks on square tubing, I-beams, and angle iron. The assembly features a built-in protractor and a collapsible arm system for efficient storage and transport. This vintage set comes with its packaging and technical documentation.

Key Features:

• Model Number: Curv-O-Mark Standard Contour Marker Stock No. 1

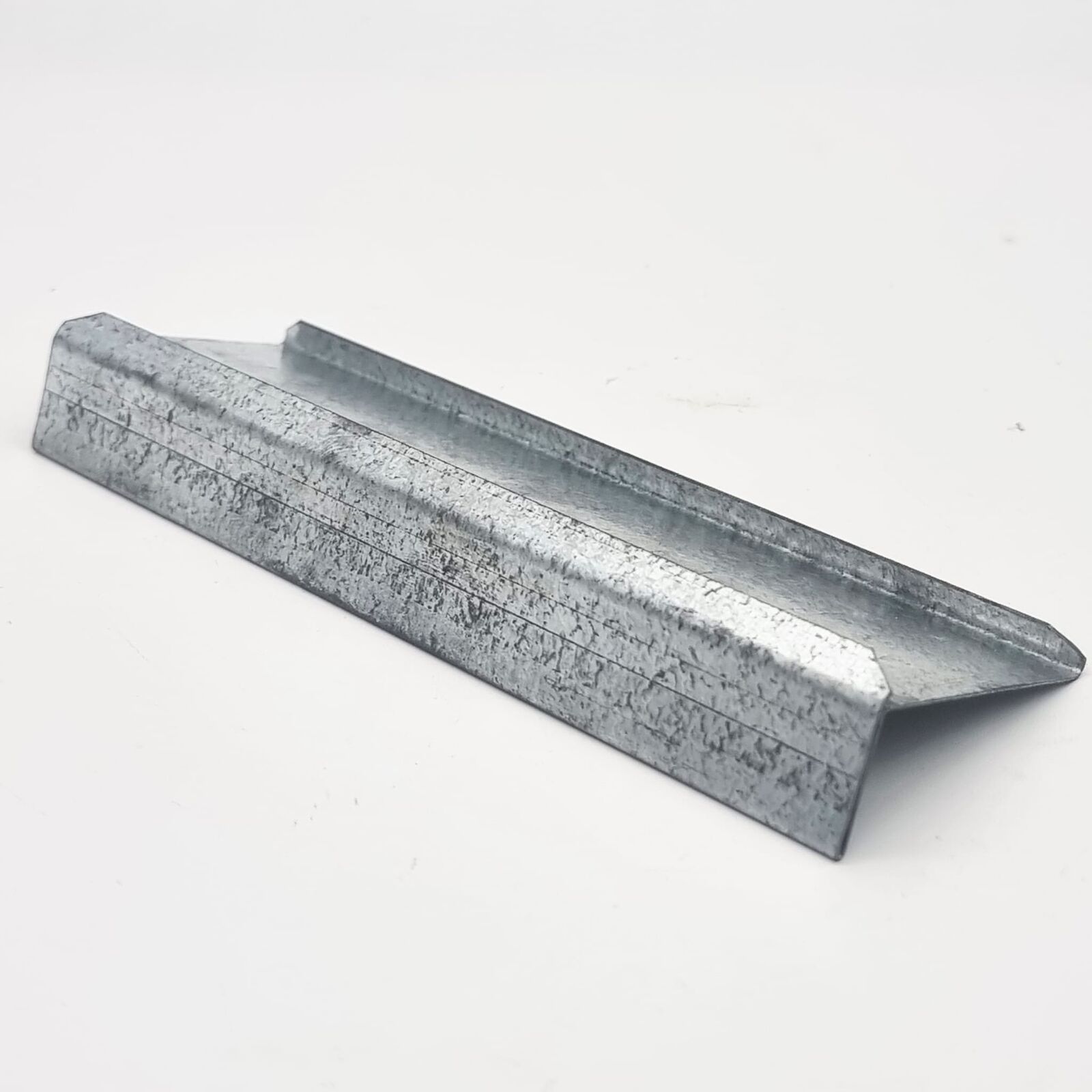

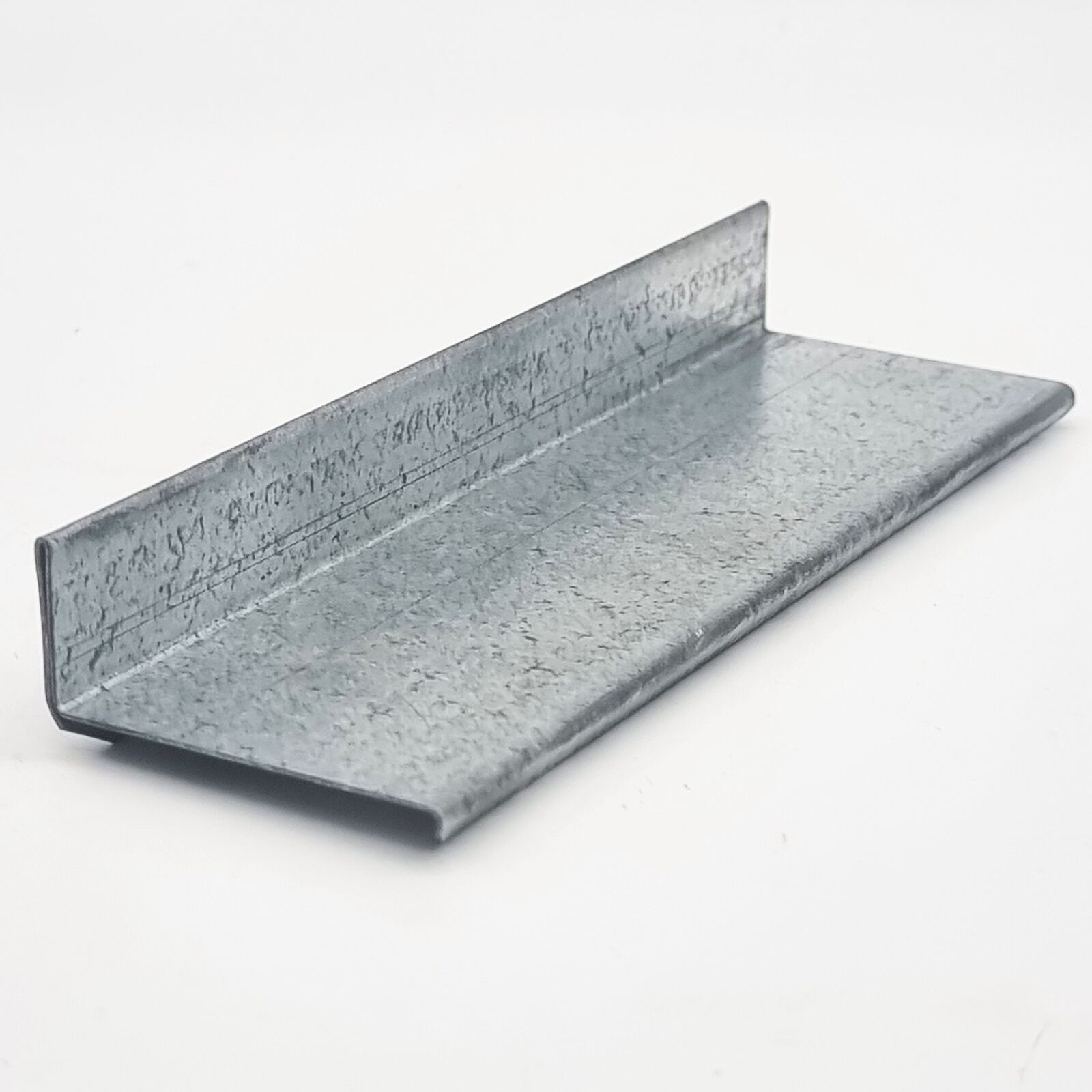

• Structural Adaptor: Includes adaptor for marking angles on I-beams, channels, and square tubing
• Marking Medium: Utilizes a standard soapstone marker held by a threaded adjustment clamp

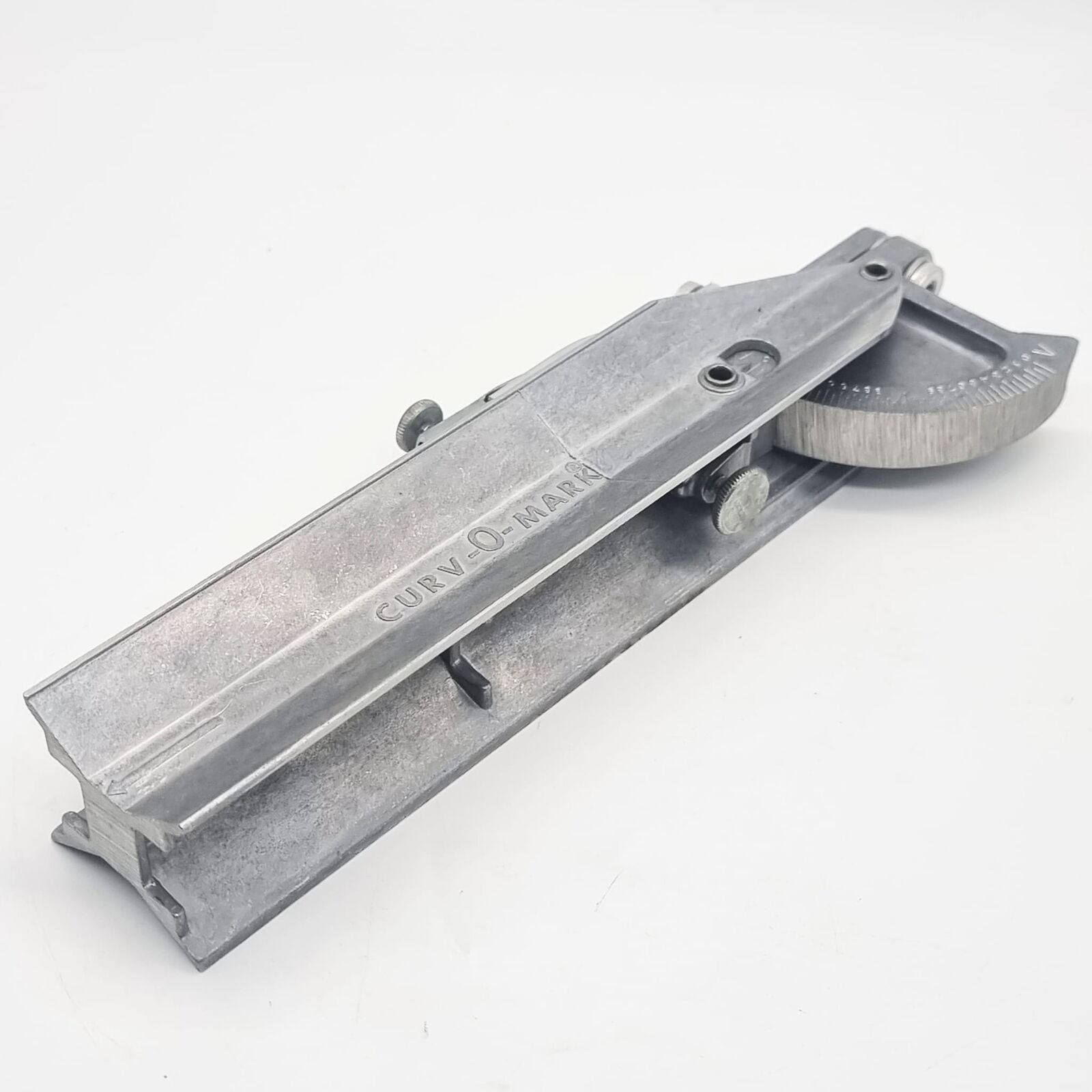

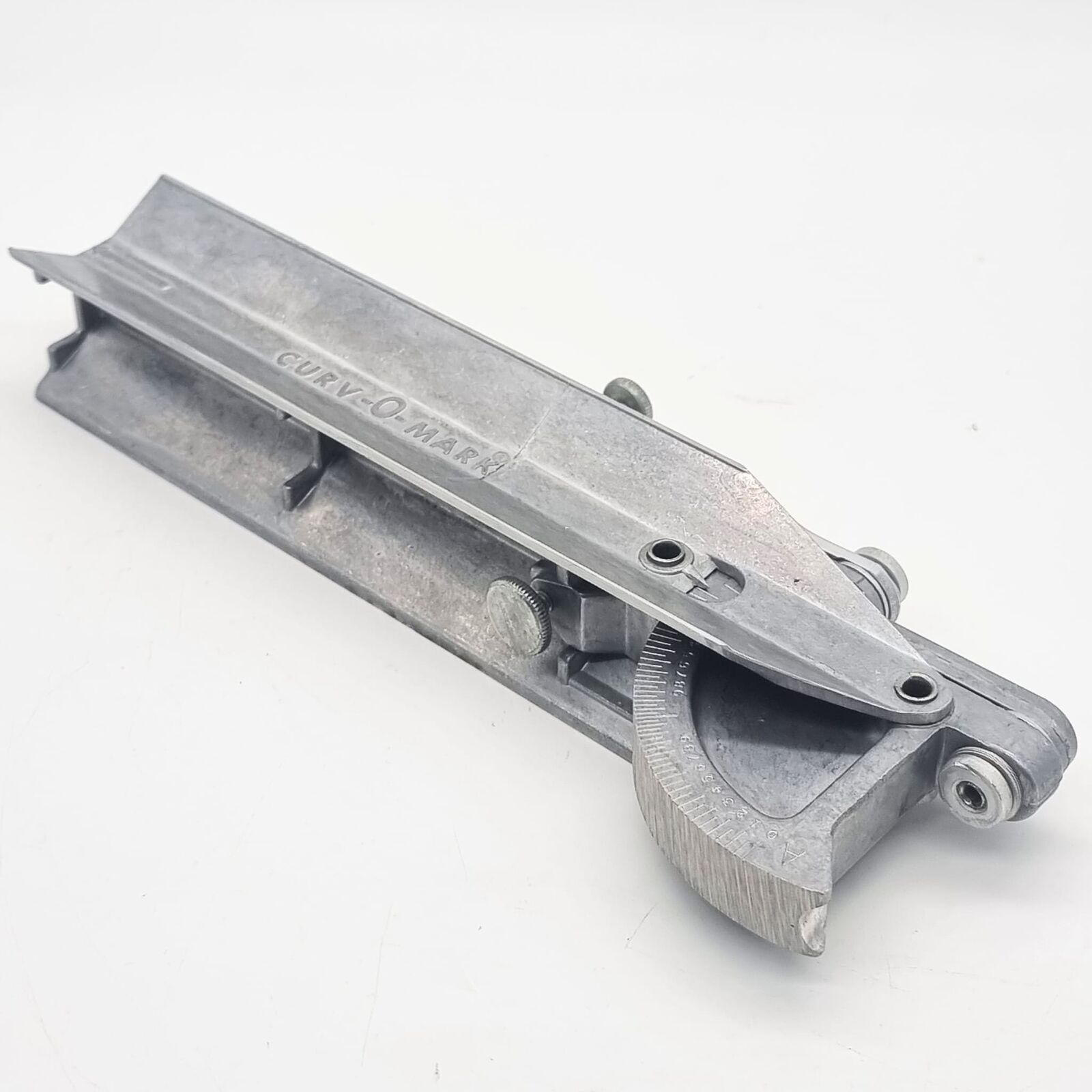

• Integrated Protractor: Features a graduated scale for precise angular measurements during layout

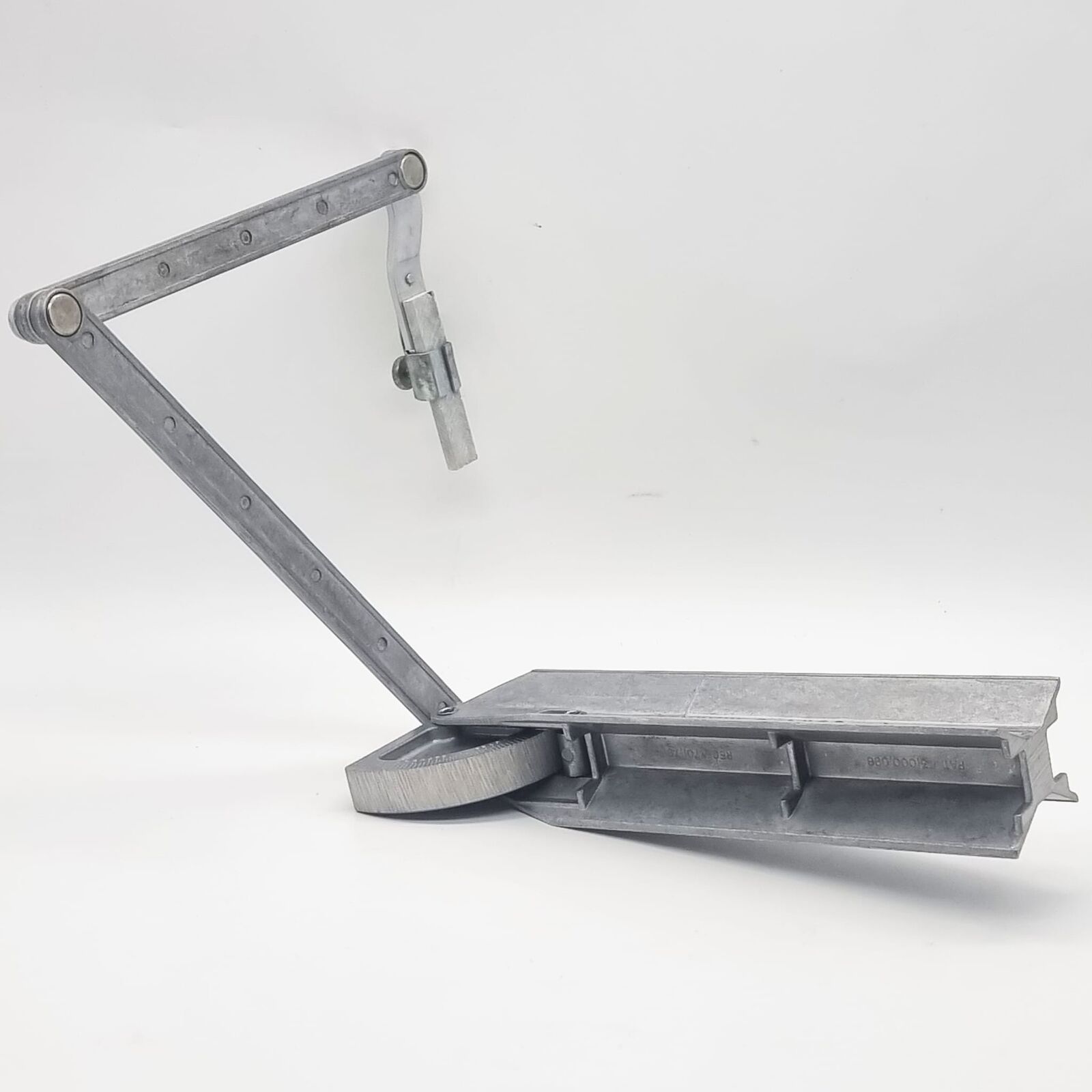

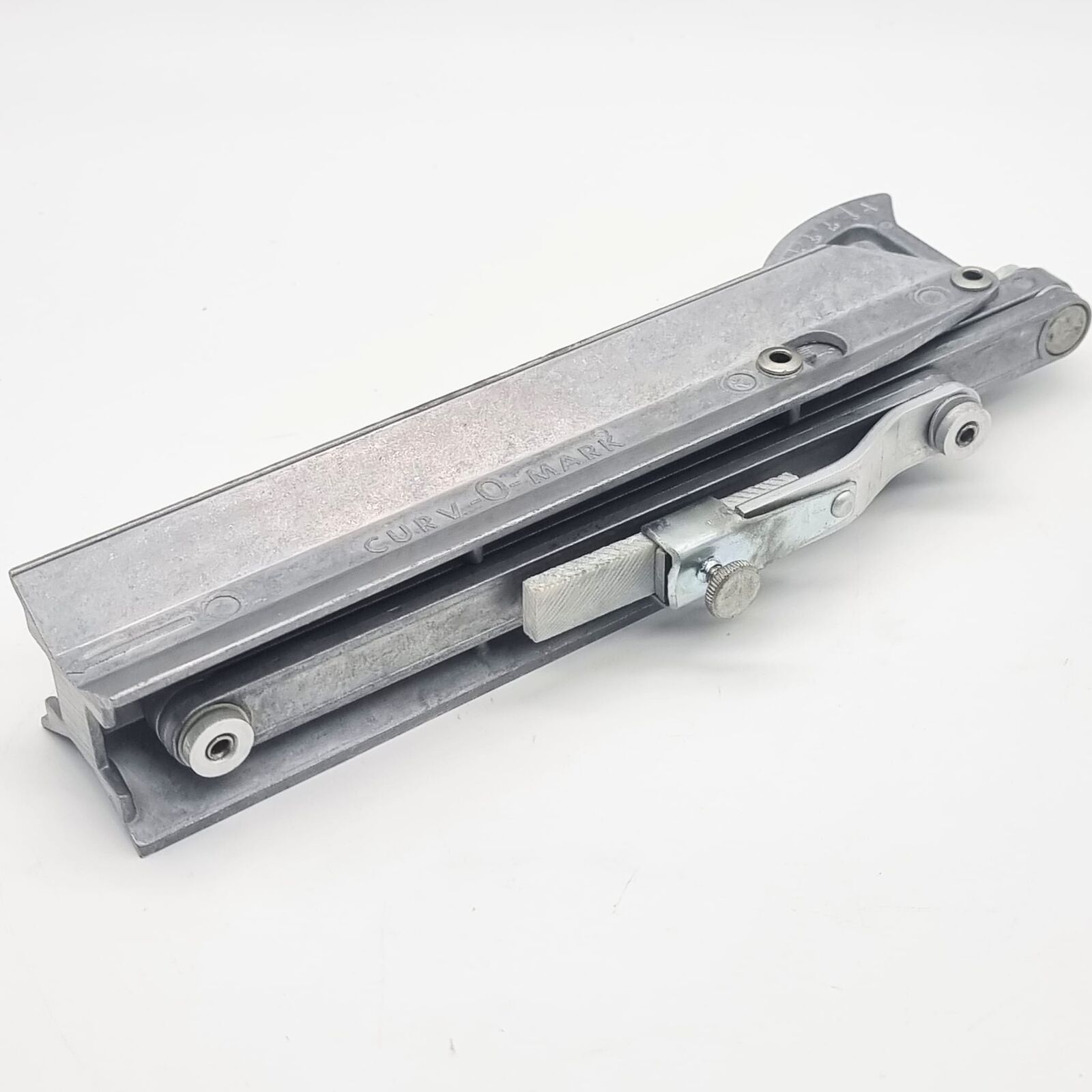

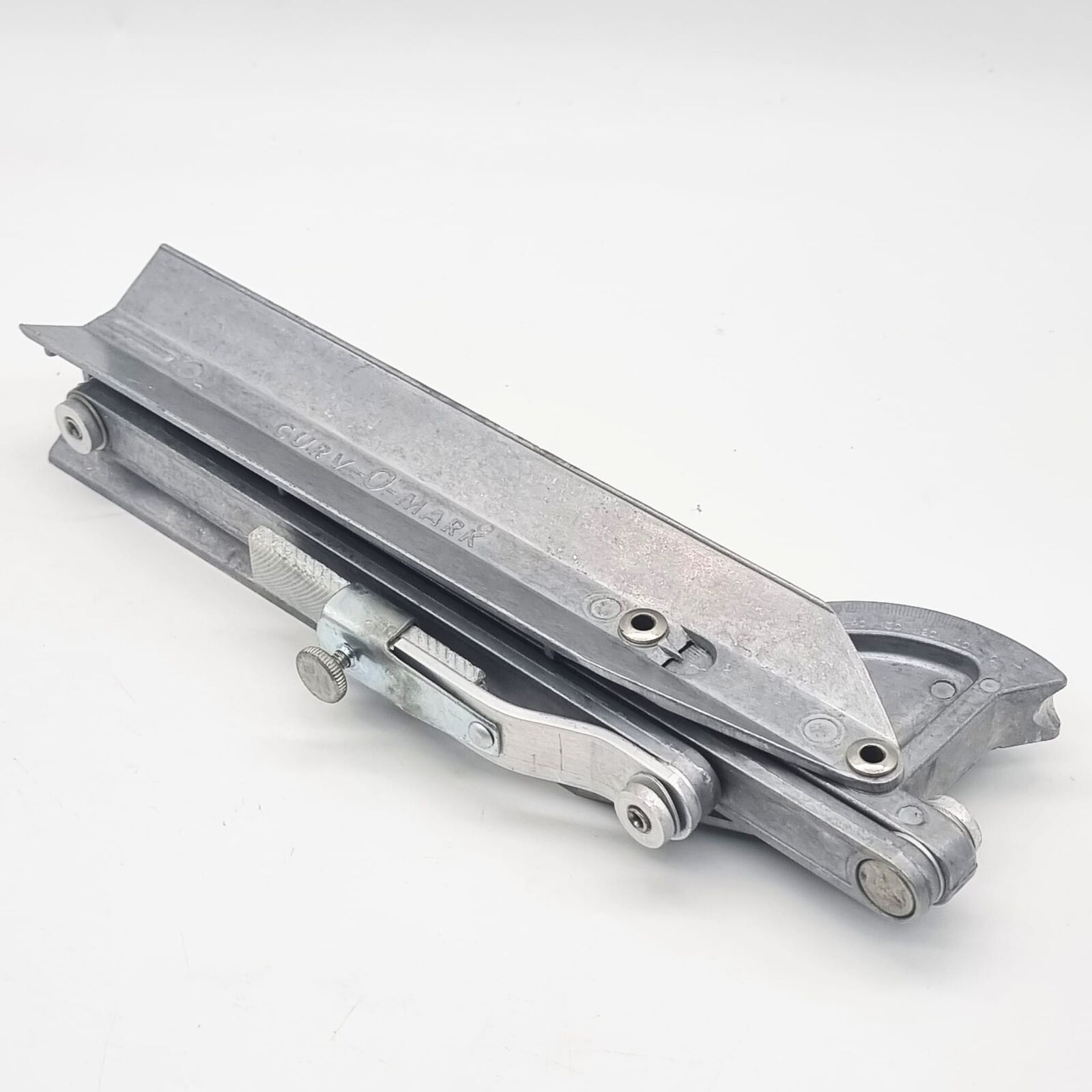

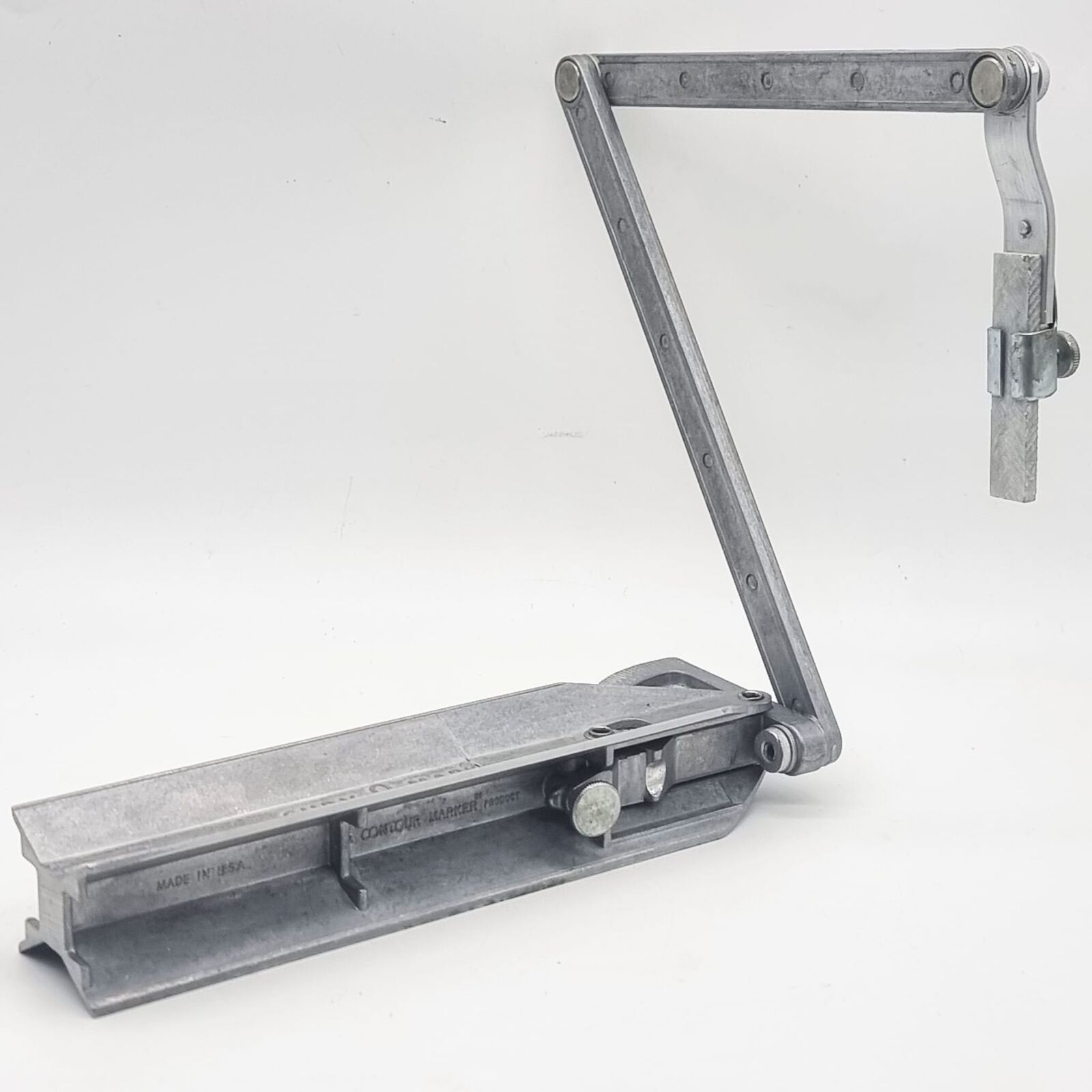

• Collapsible Design: Marker arms and soapstone holder fold into the base for compact storage
• Durable Construction: Heavy-duty metal body

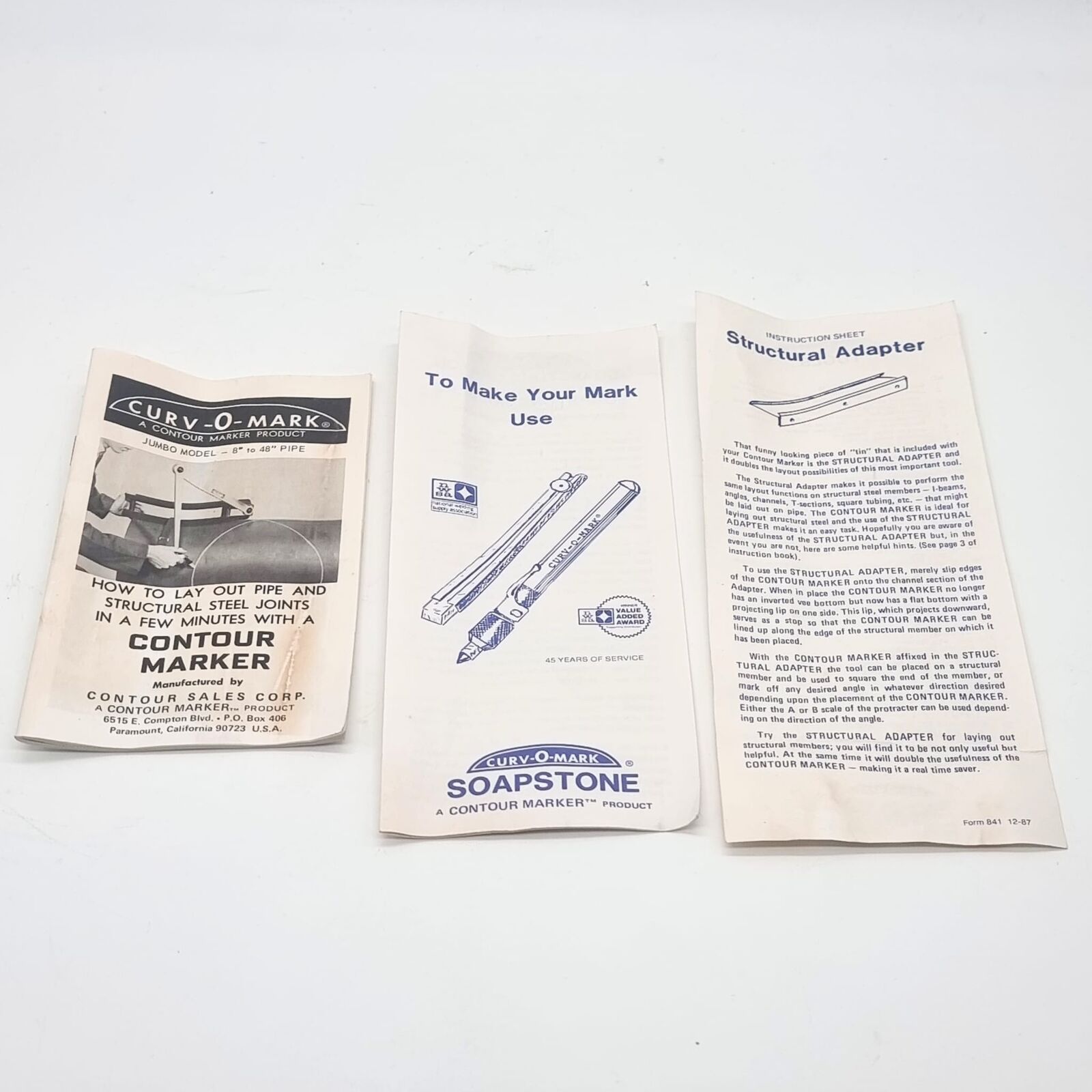

• Documentation: Includes instruction sheets for both the marker and structural adaptor

NEW, NEVER USED.
